Step 4: Variable Coseismic Slip#
Features
Triangular cells
pylith.meshio.MeshIOPetsc
pylith.problems.TimeDependent
pylith.materials.Elasticity
pylith.materials.IsotropicLinearElasticity
pylith.faults.FaultCohesiveKin
pylith.faults.KinSrcStep
field split preconditioner
Schur complement preconditioner
pylith.bc.DirichletTimeDependent
spatialdata.spatialdb.UniformDB
pylith.meshio.OutputSolnBoundary
pylith.meshio.DataWriterHDF5
Static simulation
Simulation parameters#
We use this example to illustrate prescribing slip that varies along the strike of the fault. This example also serves as a means to generate coseismic displacements at fake GNSS stations. In Step 6 we will use the displacements at these stations along with static Green’s functions computed in Step 5 to invert for the slip on the fault.
We prescribe left-lateral slip that varies along the strike of the fault with fixed displacements on the +x and -x boundaries (Fig. 65), similar to what we had in Step 1. The slip is nonzero over the region -20 km \(\le\) y \(\le\) +20 km with a peak slip of 80 cm at y=-0.5 km (Fig. 67).
This example involves a static simulation that solves for the deformation from prescribed coseismic slip on the fault.
Fig. 65 shows the boundary conditions on the domain.
The parameters specific to this example are in step04_varslip.cfg.
Fig. 65 Boundary conditions for static coseismic slip. We set the x and y displacement to zero on the +x and -x boundaries and prescribe left-lateral slip that varies along strike.#
For greater accuracy in modeling the spatial variation in slip, we use a basis order of 2 for the solution subfields.
[pylithapp.problem]
defaults.quadrature_order = 2
[pylithapp.problem.solution.subfields]
displacement.basis_order = 2
lagrange_multiplier_fault.basis_order = 2
[pylithapp.problem.materials.elastic_xneg]
derived_subfields.cauchy_strain.basis_order = 1
derived_subfields.cauchy_stress.basis_order = 1
[pylithapp.problem.materials.elastic_xpos]
derived_subfields.cauchy_strain.basis_order = 1
derived_subfields.cauchy_stress.basis_order = 1
We also add output of the solution at fake GNSS stations given in the file gnss_stations.txt.
You can use the Python script generate_gnssstations.py to generate a different random set of stations; the default parameters will generate the provided gnss_stations.txt file.

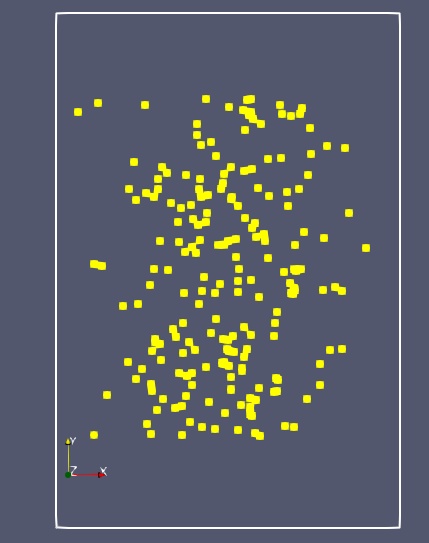

Fig. 66 Location of randomly distributed fake GNSS stations in gnss_stations.txt.#
[pylithapp.problem]
solution_observers = [domain, top_boundary, bot_boundary, gnss_stations]
solution_observers.gnss_stations = pylith.meshio.OutputSolnPoints
[pylithapp.problem.solution_observers.gnss_stations]
label = gnss_stations
reader.filename = gnss_stations.txt
reader.coordsys.space_dim = 2
[pylithapp.problem]
solution_observers = [domain, top_boundary, bot_boundary, gnss_stations]
solution_observers.gnss_stations = pylith.meshio.OutputSolnPoints
[pylithapp.problem.solution_observers.gnss_stations]
label = gnss_stations
reader.filename = gnss_stations.txt
reader.coordsys.space_dim = 2
The earthquake rupture occurs along the central portion of the fault with spatially variable slip.
Fig. 67 Prescribed left-lateral slip that varies along the strike of the fault. A strike of 0 corresponds to y=0.#
We use a SimpleDB to define the spatial variation in slip.
[pylithapp.problem.interfaces.fault.eq_ruptures.rupture]
db_auxiliary_field = spatialdata.spatialdb.SimpleDB
db_auxiliary_field.description = Fault rupture auxiliary field spatial database
db_auxiliary_field.iohandler.filename = slip_variable.spatialdb
db_auxiliary_field.query_type = linear
Running the simulation#
$ pylith step04_varslip.cfg
# The output should look something like the following.
>> /software/unix/py3.12-venv/pylith-debug/lib/python3.12/site-packages/pylith/apps/PyLithApp.py:77:main
-- pylithapp(info)
-- Running on 1 process(es).
>> /software/unix/py3.12-venv/pylith-debug/lib/python3.12/site-packages/pylith/meshio/MeshIOObj.py:38:read
-- meshiopetsc(info)
-- Reading finite-element mesh
>> /src/cig/pylith/libsrc/pylith/meshio/MeshIO.cc:85:void pylith::meshio::MeshIO::read(pylith::topology::Mesh *, const bool)
-- meshiopetsc(info)
-- Component 'reader': Domain bounding box:
(-50000, 50000)
(-75000, 75000)
# -- many lines omitted --
>> /software/unix/py3.12-venv/pylith-debug/lib/python3.12/site-packages/pylith/problems/TimeDependent.py:132:run
-- timedependent(info)
-- Solving problem.
0 TS dt 0.01 time 0.
0 SNES Function norm 5.220560316093e-03
Linear solve converged due to CONVERGED_ATOL iterations 27
1 SNES Function norm 1.523809186100e-12
Nonlinear solve converged due to CONVERGED_FNORM_ABS iterations 1
1 TS dt 0.01 time 0.01
>> /software/unix/py3.12-venv/pylith-debug/lib/python3.12/site-packages/pylith/problems/Problem.py:199:finalize
-- timedependent(info)
-- Finalizing problem.
The beginning of the output written to the terminal matches that in our previous simulations.
At the end of the output written to the terminal, we see that the solver advanced the solution one time step (static simulation).
The linear solve converged after 27 iterations and the norm of the residual met the absolute convergence tolerance (ksp_atol).
The nonlinear solve converged in 1 iteration, which we expect because this is a linear problem, and the residual met the absolute convergence tolerance (snes_atol).
Visualizing the results#
In Fig. 68 we use the pylith_viz utility to visualize the y displacement field.
pylith_viz --filename=output/step04_varslip-domain.h5 warp_grid --component=y

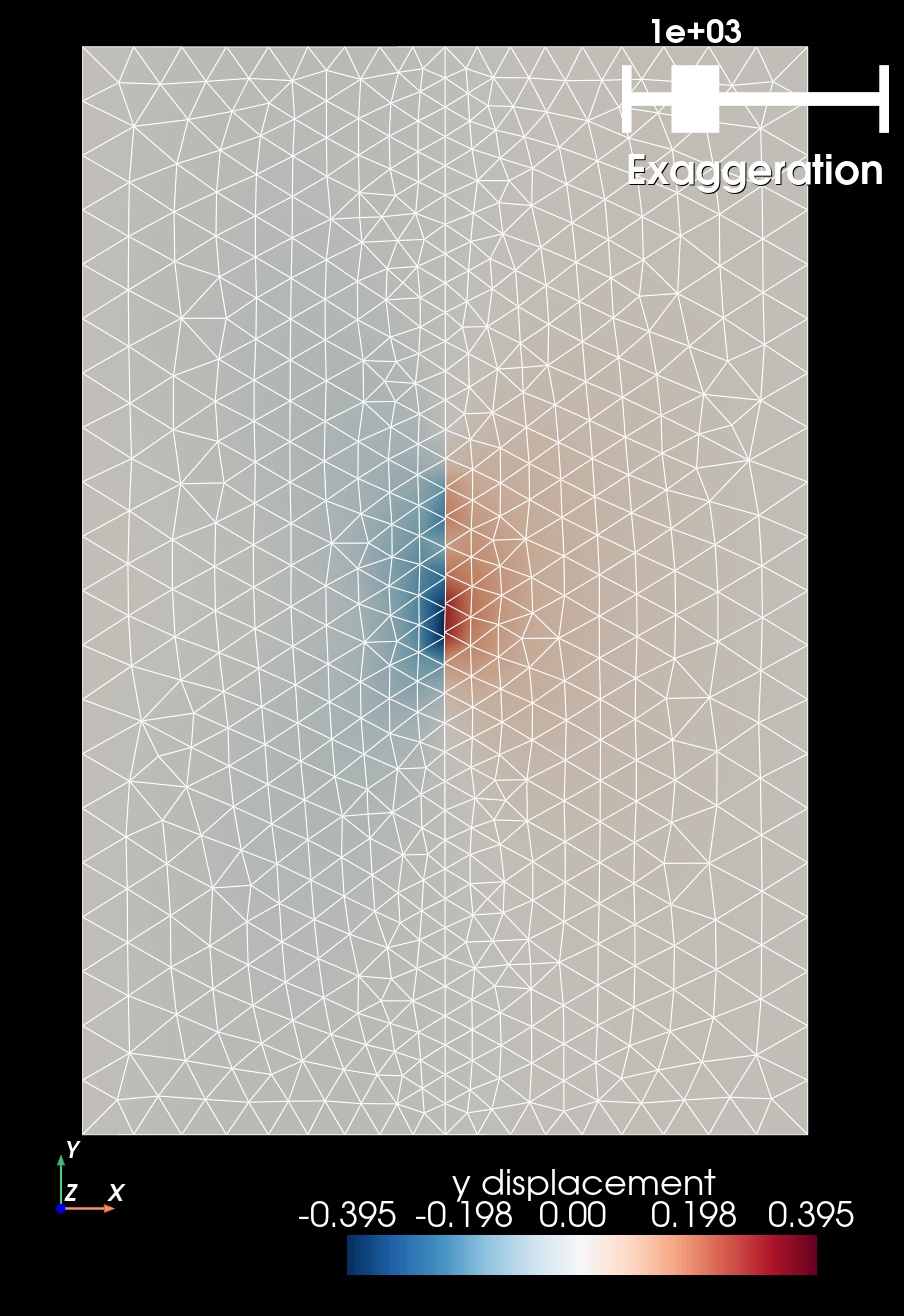

Fig. 68 Solution for Step 4. The colors of the shaded surface indicate the y displacement, and the deformation is exaggerated by a factor of 1000.#
