Step 3: Interseismic Deformation#

This example involves a quasi-static simulation for interseismic deformation. We prescribe aseismic slip (creep) on the bottom of the slab and the deeper portion of the top of the slab; the shallow portion of the top of the slab remains locked. We use linear Maxwell viscoelastic bulk rheologies in the mantle and deeper part of the slab. Fig. 147 shows the boundary conditions on the domain.

Fig. 147 Boundary conditions for quasi-static interseismic deformation. We prescribe aseismic slip (creep) on the bottom of the slab and the deeper portion of the top of the slab; the shallow portion of the top of the slab remains locked.#

Features

  • Tetrahedral cells

  • pylith.meshio.MeshIOCubit

  • pylith.problems.TimeDependent

  • pylith.meshio.OutputSolnBoundary

  • pylith.meshio.DataWriterHDF5

  • pylith.bc.DirichletTimeDependent

  • pylith.bc.ZeroDB

  • spatialdata.geocoords.CSGeo

  • pylith.materials.Elasticity

  • pylith.materials.IsotropicLinearElasticity

  • pylith.materials.IsotropicLinearMaxwell

  • spatialdata.spatialdb.CompositeDB

  • spatialdata.spatialdb.SimpleDB

  • spatialdata.spatialdb.SimpleGridDB

  • pylith.materials.Elasticity

  • pylith.materials.IsotropicLinearElasticity

  • pylith.materials.IsotropicLinearMaxwell

  • spatialdata.spatialdb.CompositeDB

  • spatialdata.spatialdb.SimpleDB

  • spatialdata.spatialdb.SimpleGridDB

  • Quasi-static simulation

  • pylith.faults.KinSrcConstRate

Simulation parameters#

The parameters specific to this example are in step03_interseismic.cfg and include:

  • pylithapp.metadata Metadata for this simulation. Even when the author and version are the same for all simulations in a directory, we prefer to keep that metadata in each simulation file as a reminder to keep it up-to-date for each simulation.

  • pylithapp Parameters defining where to write the output.

  • pylithapp.problem Parameters for the time step information as well as solution field with displacement and Lagrange multiplier subfields.

  • pylithapp.interfaces Parameters for the aseismic slip (creep) on the top and bottom of the slab.

  • pylithapp.problem.bc Parameters for describing the boundary conditions that override the defaults.

For aseismic slip we use the KinSrcConstRate kinematic source to prescribe a constant slip rate. We also adjust the nodesets used for the boundary conditions to remove overlap with the slab to allow the slab to move independently.

Listing 206 Run Step 3 simulation#
$ pylith step03_interseismic.cfg mat_viscoelastic.cfg

# The output should look something like the following.
 >> /software/unix/py3.12-venv/pylith-opt/lib/python3.12/site-packages/pylith/apps/PyLithApp.py:77:main
 -- pylithapp(info)
 -- Running on 1 process(es).
 >> /software/unix/py3.12-venv/pylith-opt/lib/python3.12/site-packages/pylith/meshio/MeshIOObj.py:38:read
 -- meshiocubit(info)
 -- Reading finite-element mesh
 >> /src/cig/pylith/libsrc/pylith/meshio/MeshIOCubit.cc:148:void pylith::meshio::MeshIOCubit::_readVertices(ExodusII &, scalar_array *, int *, int *) const
 -- meshiocubit(info)
 -- Component 'reader': Reading 24824 vertices.
 >> /src/cig/pylith/libsrc/pylith/meshio/MeshIOCubit.cc:208:void pylith::meshio::MeshIOCubit::_readCells(ExodusII &, int_array *, int_array *, int *, int *) const
 -- meshiocubit(info)
 -- Component 'reader': Reading 134381 cells in 4 blocks.
 >> /src/cig/pylith/libsrc/pylith/meshio/MeshIOCubit.cc:270:void pylith::meshio::MeshIOCubit::_readGroups(ExodusII &)
 -- meshiocubit(info)
 -- Component 'reader': Found 22 node sets.

# -- many lines omitted --

 >> /src/cig/pylith/libsrc/pylith/utils/PetscOptions.cc:239:static void pylith::utils::_PetscOptions::write(pythia::journal::info_t &, const char *, const PetscOptions &)
 -- petscoptions(info)
 -- Setting PETSc options:
dm_reorder_section = true
dm_reorder_section_type = cohesive
ksp_atol = 1.0e-12
ksp_converged_reason = true
ksp_error_if_not_converged = true
ksp_guess_pod_size = 8
ksp_guess_type = pod
ksp_rtol = 1.0e-12
mg_fine_pc_type = vpbjacobi
pc_type = gamg
snes_atol = 1.0e-9
snes_converged_reason = true
snes_error_if_not_converged = true
snes_monitor = true
snes_rtol = 1.0e-12
ts_error_if_step_fails = true
ts_monitor = true
ts_type = beuler

# -- many lines omitted --

20 TS dt 0.1 time 1.9
    0 SNES Function norm 8.194771946100e+00
    Linear solve converged due to CONVERGED_ATOL iterations 13
    1 SNES Function norm 1.577696903418e-10
  Nonlinear solve converged due to CONVERGED_FNORM_ABS iterations 1
21 TS dt 0.1 time 2.
 >> /software/unix/py3.12-venv/pylith-opt/lib/python3.12/site-packages/pylith/problems/Problem.py:199:finalize
 -- timedependent(info)
 -- Finalizing problem.

The beginning of the output is nearly the same as in Step 2. The simulation advances 21 time steps. The linear solve converged after 13 iterations and the norm of the residual met the absolute convergence tolerance (ksp_atol) . In this simulation the fault interfaces on the top and bottom of the slab occupy a significant fraction of the domain. As a result, the linear solver requires many more iterations to converge compared to the limited fault interface in Step 2.

Visualizing the results#

In Fig. 148 we use the pylith_viz utility to visualize the x displacement field. You can move the slider or use the p and n keys to change the increment or decrement time.

Listing 207 Visualize PyLith output using pylith_viz.#
pylith_viz --filename=output/step03_interseismic-domain.h5 warp_grid --component=x --exaggeration=5000

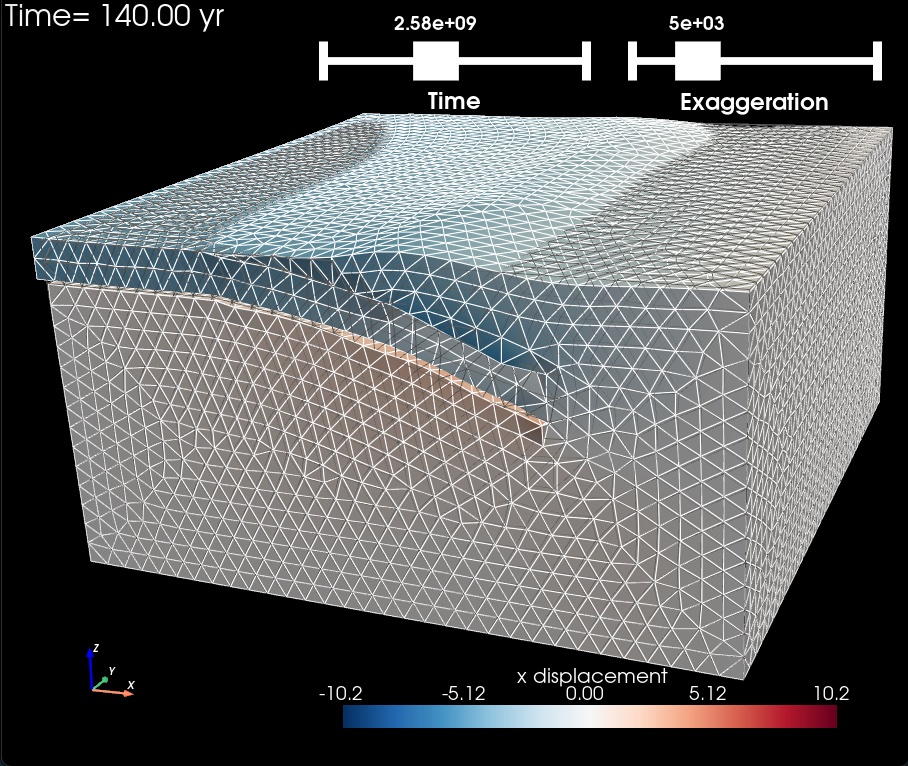

Solution for Step 3 at t=140 yr. The colors indicate the x displacement, and the deformation is exaggerated by a factor of 5000.

Fig. 148 Solution for Step 3 at t=140 yr. The colors of the shaded surface indicate the x displacement, and the deformation is exaggerated by a factor of 5000.#
