Step 2: Shear Displacement#

Features

  • Tetrahedral cells

  • pylith.meshio.MeshIOPetsc

  • pylith.problems.TimeDependent

  • pylith.materials.Elasticity

  • pylith.materials.IsotropicLinearElasticity

  • spatialdata.spatialdb.UniformDB

  • pylith.meshio.OutputSolnBoundary

  • pylith.meshio.DataWriterHDF5

  • Static simulation

  • LU preconditioner

  • pylith.bc.DirichletTimeDependent

  • spatialdata.spatialdb.SimpleDB

  • spatialdata.spatialdb.ZeroDB

Simulation parameters#

This example corresponds to shear deformation due to Dirichlet (displacement) boundary conditions. We apply Dirichlet (displacement) boundary conditions for the y displacement on the +x (boundary_xpos) and -x (boundary_xneg) boundaries and for the x displacement on the +y (boundary_ypos) and -y (boundary_yneg) boundaries. Fig. 40 shows the boundary conditions on the domain. The parameters specific to this example are in step02_sheardisp.cfg.

Fig. 42 Boundary conditions for shear deformation. We constrain the y displacement on the +x and -x boundaries and the x displacement on the +y and -y boundaries.#

We create an array of 5 Dirichlet boundary conditions. On the -x, +x, -y, and +y boundaries we impose shear displacement.

Listing 59 Boundary conditions for Step 2. We only show the details for the -x boundary.#
bc = [bc_xneg, bc_xpos, bc_yneg, bc_ypos, bc_zneg]
bc.bc_xneg = pylith.bc.DirichletTimeDependent
bc.bc_xpos = pylith.bc.DirichletTimeDependent
bc.bc_yneg = pylith.bc.DirichletTimeDependent
bc.bc_ypos = pylith.bc.DirichletTimeDependent
bc.bc_zneg = pylith.bc.DirichletTimeDependent

[pylithapp.problem.bc.bc_xneg]
label = boundary_xneg
label_value = 10
constrained_dof = [1]

db_auxiliary_field = spatialdata.spatialdb.SimpleDB
db_auxiliary_field.description = Dirichlet BC -x boundary
db_auxiliary_field.iohandler.filename = sheardisp_bc_xneg.spatialdb
db_auxiliary_field.query_type = linear

Running the simulation#

Listing 60 Run Step 2 simulation#
$ pylith step02_sheardisp.cfg

# The output should look something like the following.
 >> software/pylith-debug/lib/python3.12/site-packages/pylith/apps/PyLithApp.py:79:main
 -- info (application-flow)
 -- Running on 1 process(es).

# -- many lines omitted --

 >> software/unix/py39-venv/pylith-debug/lib/python3.9/site-packages/pylith/problems/TimeDependent.py:139:run
 -- timedependent(info)
 -- Solving problem.
0 TS dt 0.001 time 0.
    0 SNES Function norm 5.433645185324e-01
      Linear solve converged due to CONVERGED_ATOL iterations 4
    1 SNES Function norm 4.280274905934e-09
    Nonlinear solve converged due to CONVERGED_FNORM_ABS iterations 1
1 TS dt 0.001 time 0.001
 >> software/unix/py39-venv/pylith-debug/lib/python3.9/site-packages/pylith/problems/Problem.py:201:finalize
 -- timedependent(info)
 -- Finalizing problem.
WARNING! There are options you set that were not used!
WARNING! could be spelling mistake, etc!
There is one unused database option. It is:
Option left: name:-mg_levels_pc_type value: pbjacobi source: code

The output written to the terminal is nearly identical to what we saw for Step 1.

Visualizing the results#

In Fig. 43 we use the pylith_viz utility to visualize the x displacement field.

Listing 61 Visualize PyLith output using pylith_viz.#
pylith_viz --filenames=output/step02_sheardisp-domain.h5 warp_grid --component=x

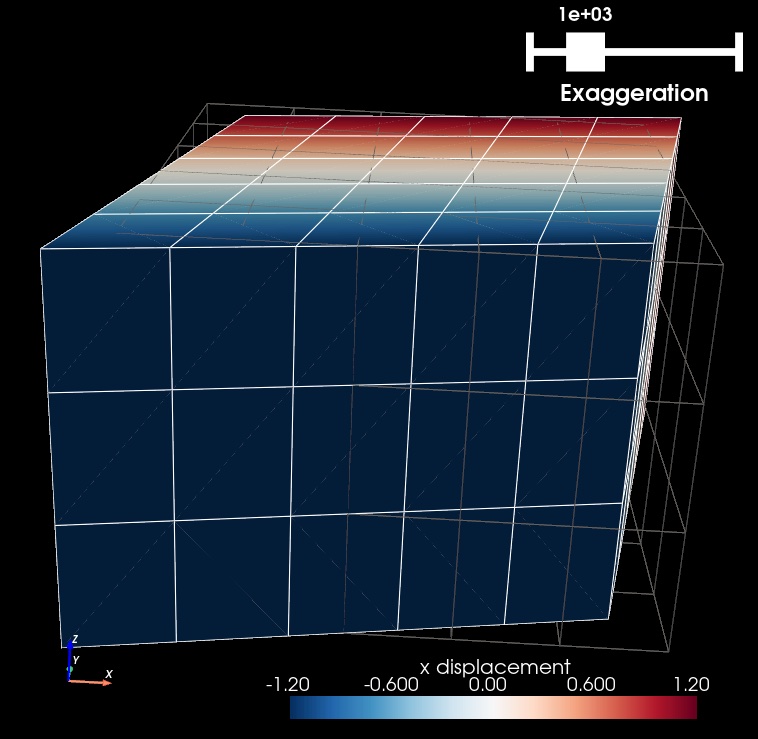

Solution for Step 2. The colors indicate the x displacement, and the deformation is exaggerated by a factor of 1000.

Fig. 43 Solution for Step 2. The colors of the shaded surface indicate the x displacement, and the deformation is exaggerated by a factor of 1000. The undeformed configuration is shown by the gray wireframe.#
