Step 3: Faults with flexure#
Features
Quasi-static problem
triangular cells
LU preconditioner
pylith.materials.Poroelasticity
pylith.meshio.MeshIOPetsc
pylith.problems.TimeDependent
pylith.problems.SolnDispPresTracStrainVelPdotTdot
pylith.problems.InitialConditionDomain
pylith.bc.DirichletTimeDependent
pylith.bc.NeumannTimeDependent
pylith.meshio.DataWriterHDF5
spatialdata.spatialdb.SimpleGridDB
Simulation parameters#
This example uses poroelasticity to model the infiltration of seawater through a slab of oceanic lithosphere. The permeability field is depth dependent, decreasing with depth and also varies laterally, simulating the enhanced permeability within normal faults in the outer-rise. The lithosphere is subject to deformation, over 300 kyr the slab bends to simulate extensional stresses in the outer-rise of a subduction zone. A fluid pressure is applied to the top boundary that is equivalent to the pressure exerted on the seafloor by the water column. This simulates what the hydration state of the oceanic lithosphere as it is about to enter a convergent margin with the addition of enhanced permeability within faults.
Fig. 174 shows the boundary conditions on the domain.
The parameters specific to this example are in step03_faults_flexure.cfg.
Fig. 174 Boundary and initial conditions for Step 3.
We fix the left boundary, and we apply a spatially varying velocity condition on the top boundary using a SimpleDB file, while leaving the right and bottom boundaries unconstrained.
We add laterally varying permeability by increasing the permeability within the vicinity of faults in the outer-rise.
We impose a fluid pressure on the +y boundary equal to the weight of the water column to generate fluid flow.#
[pylithapp.problem.bc.boundary_top]
use_initial = False
use_rate = True
db_auxiliary_field = spatialdata.spatialdb.SimpleDB
db_auxiliary_field.description = Dirichlet BC +y boundary
db_auxiliary_field.iohandler.filename = top_velocity_boundary.spatialdb
SimpleGridDB file that contains enhanced permeability around outer rise faults.#[pylithapp.problem]
[pylithapp.problem.materials.slab]
db_auxiliary_field.filename = enhanced_faultzone_permeability.spatialdb
Running the simulation#
$ pylith step03_faults_flexure.cfg
>> /software/pylith-debug/lib/python3.11/site-packages/pylith/apps/PyLithApp.py:77:main
-- pylithapp(info)
-- Running on 1 process(es).
>> /software/pylith-debug/lib/python3.11/site-packages/pylith/meshio/MeshIOObj.py:38:read
-- meshiopetsc(info)
-- Reading finite-element mesh
>>/pylith-main/libsrc/pylith/meshio/MeshIO.cc:85:void pylith::meshio::MeshIO::read(pylith::topology::Mesh *, const bool)
-- meshiopetsc(info)
-- Component 'reader': Domain bounding box:
(0, 150000)
(-30000, 0)
# -- many lines omitted --
>> /software/pylith-debug/lib/python3.11/site-packages/pylith/problems/TimeDependent.py:132:run
-- timedependent(info)
-- Solving problem.
0 TS dt 6000. time -6000.
0 SNES Function norm 4.692204688517e+02
Linear solve converged due to CONVERGED_RTOL iterations 51
1 SNES Function norm 1.735308572703e-11
Nonlinear solve converged due to CONVERGED_FNORM_ABS iterations 1
1 TS dt 6000. time 0.
0 SNES Function norm 1.697747712433e+02
Linear solve converged due to CONVERGED_RTOL iterations 42
1 SNES Function norm 1.553900697341e-10
Nonlinear solve converged due to CONVERGED_FNORM_ABS iterations 1
# -- many lines omitted --
50 TS dt 6000. time 294000.
0 SNES Function norm 1.697753482119e+02
Linear solve converged due to CONVERGED_RTOL iterations 24
1 SNES Function norm 3.574116140624e-10
Nonlinear solve converged due to CONVERGED_FNORM_ABS iterations 1
51 TS dt 6000. time 300000.
>> /software/pylith-debug/lib/python3.11/site-packages/pylith/problems/Problem.py:199:finalize
-- timedependent(info)
-- Finalizing problem.
Visualizing the results#
In Fig. 175 we use the pylith_viz utility to visualize the porosity field.
pylith_viz --filenames=output/step03_faults_flexure-slab.h5 warp_grid --field=porosity --exaggeration=1 --hide-edges

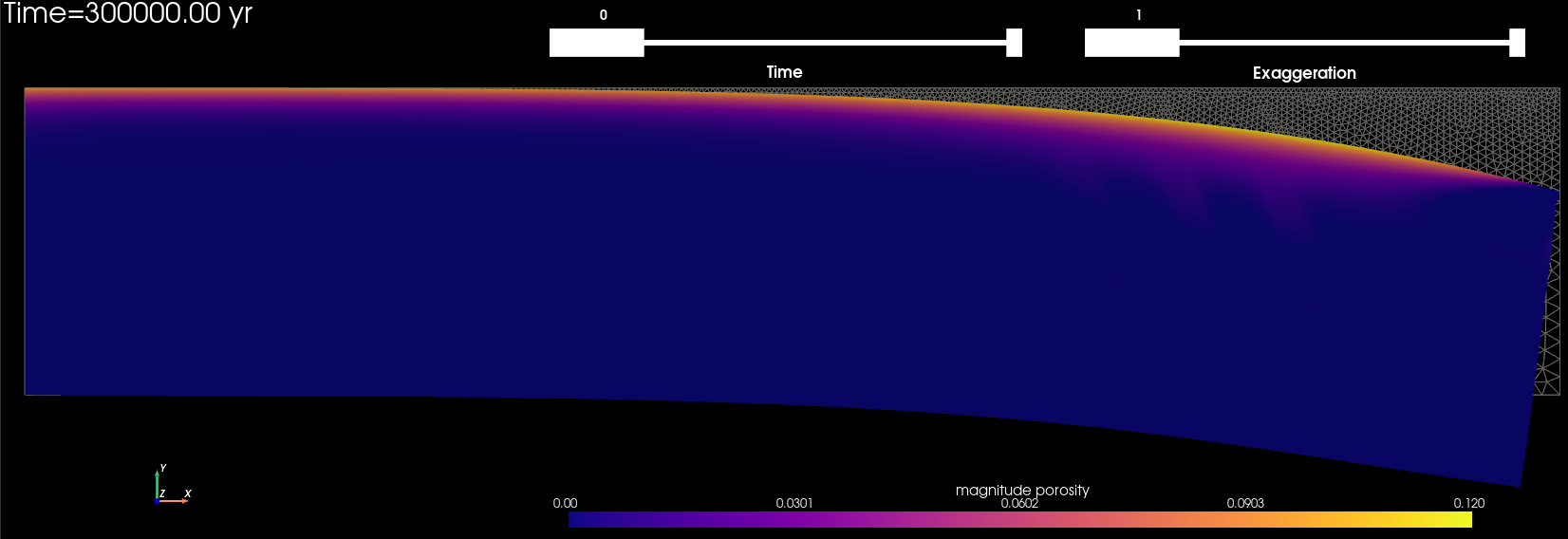

Fig. 175 Porosity field at the end of the simulation for Step 3.#
